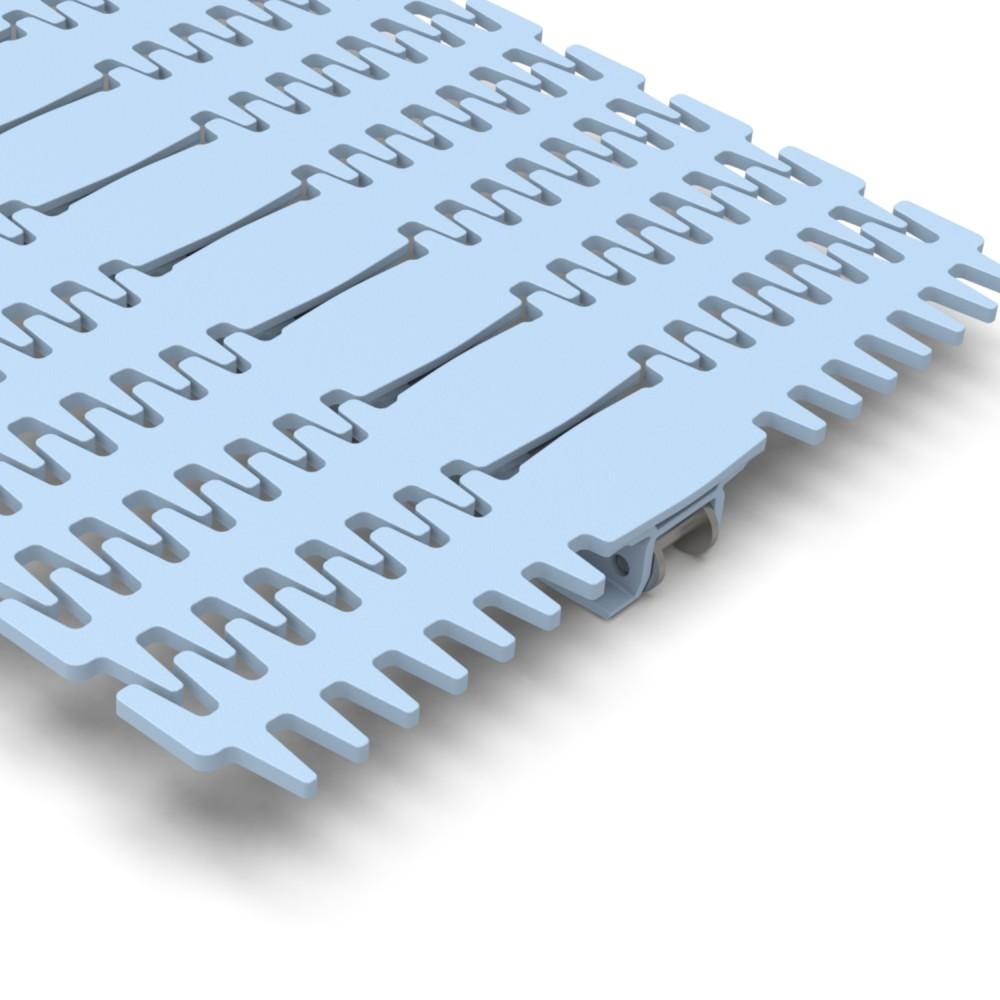

1883 TAB Flat Top
Chains > Plastic chains
Product configuration
| Series: | 1843-1863-1873-1874-18831843-1863-1873-1874-1883 |
|---|---|
| Pitch: | 50.8 mm2.000 in |
| Thickness: | 6 mm0.236 in |
| Surface Type: | FT - Flat TopFT - Flat Top |
| Functionality: | Side FlexSide Flex |
| Unit of measure: | Meter |
| Box: | 10 ft - 3,048 m10 ft - 3,048 m |
|---|---|
| Roller chain: | C45C45 |
| Width: | K1500 - 381,0 mmK1500 - 381,0 mm |
| Back flex radius: | 350 mm13.780 in |
| Sideflexing radius min: | 711 mm27.992 in |
| Material: | LFA - Low Friction Acetal (01)LFA - Low Friction Acetal (01) |
| Part: | P1164P1164 |
| Mass: | 12.5 kg/m2.6 lbs/ft |
| Max working load: | 6500 N6500 lbs |
| Supplementary informations: | Sprockets ASA 80 - standard on Market |
