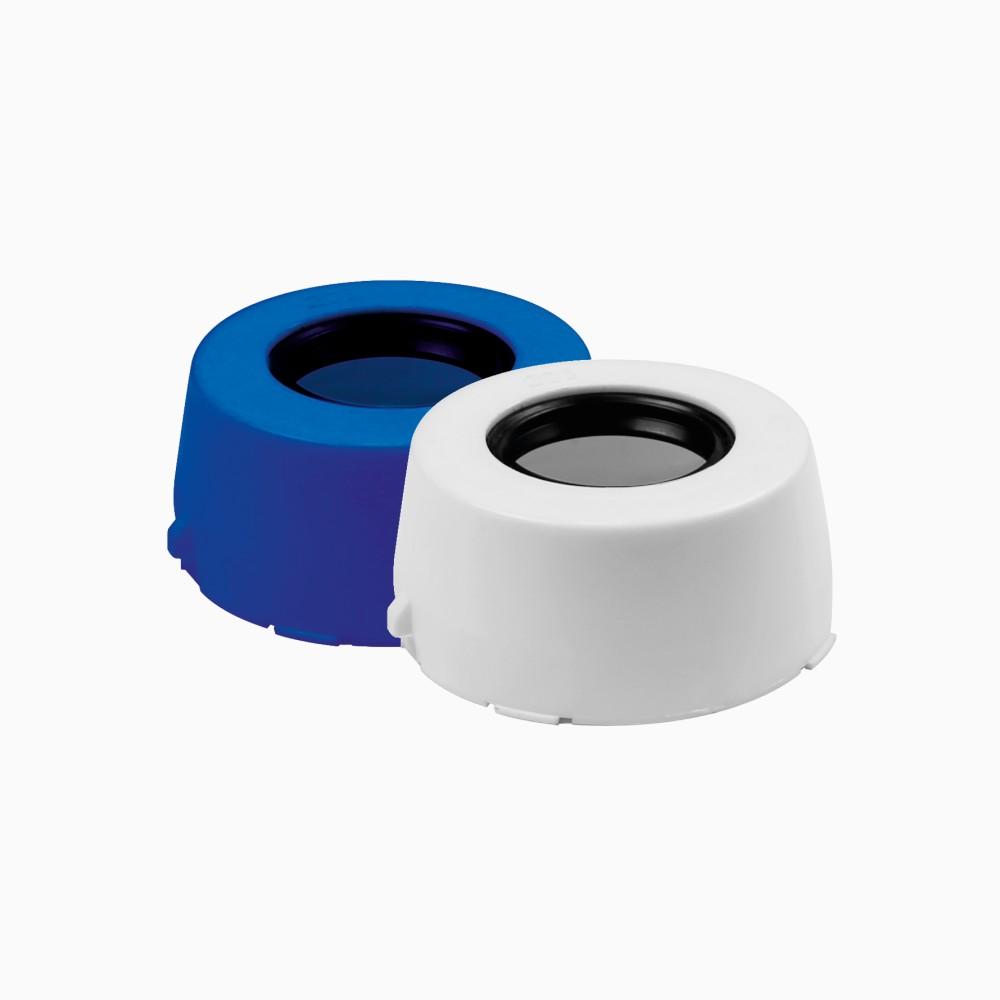

Hygienic safety cap
Bearings supports
Movex accessories for bearing supports.
A reliable solution for several markets, like beverage, food, pharmaceutical and industrial environments: based on the application requirements, almost 1500 different types can be found.
Product configuration
| Product code | A | Operating Temperature °C | D | Color | Watertight (Safety cap) | Shaft diameter | Cap | Seal |
|---|---|---|---|---|---|---|---|---|
| P89851B | 23 mm0.906 in | 0÷80 °C-32÷176 °F | 50 mm1.969 in | BlueBlue | Yes, open capYes, open cap | 20 mm20 mm | Polypropylene open cap with NBR top sealPolypropylene open cap with NBR top seal | NBR bottom sealNBR bottom seal |
| P89852 | 25 mm0.984 in | 0÷80 °C-32÷176 °F | 55 mm2.165 in | White White | Yes, open capYes, open cap | 25 mm25 mm | Polypropylene open cap with NBR top sealPolypropylene open cap with NBR top seal | NBR bottom sealNBR bottom seal |
| P89852B | 25 mm0.984 in | 0÷80 °C-32÷176 °F | 55 mm2.165 in | BlueBlue | Yes, open capYes, open cap | 25 mm25 mm | Polypropylene open cap with NBR top sealPolypropylene open cap with NBR top seal | NBR bottom sealNBR bottom seal |
| P89853 | 30 mm1.181 in | 0÷80 °C-32÷176 °F | 64 mm2.520 in | White White | Yes, open capYes, open cap | 30 mm30 mm | Polypropylene open cap with NBR top sealPolypropylene open cap with NBR top seal | NBR bottom sealNBR bottom seal |
| P89853B | 30 mm1.181 in | 0÷80 °C-32÷176 °F | 64 mm2.520 in | BlueBlue | Yes, open capYes, open cap | 30 mm30 mm | Polypropylene open cap with NBR top sealPolypropylene open cap with NBR top seal | NBR bottom sealNBR bottom seal |
| P89854 | 32 mm1.260 in | 0÷80 °C-32÷176 °F | 73 mm2.874 in | White White | Yes, open capYes, open cap | 35 mm35 mm | Polypropylene open cap with NBR top sealPolypropylene open cap with NBR top seal | NBR bottom sealNBR bottom seal |
| P89854B | 32 mm1.260 in | 0÷80 °C-32÷176 °F | 73 mm2.874 in | BlueBlue | Yes, open capYes, open cap | 35 mm35 mm | Polypropylene open cap with NBR top sealPolypropylene open cap with NBR top seal | NBR bottom sealNBR bottom seal |
| P89855 | 38 mm1.496 in | 0÷80 °C-32÷176 °F | 84 mm3.307 in | White White | Yes, open capYes, open cap | 40 mm40 mm | Polypropylene open cap with NBR top sealPolypropylene open cap with NBR top seal | NBR bottom sealNBR bottom seal |
| P89855B | 38 mm1.496 in | 0÷80 °C-32÷176 °F | 84 mm3.307 in | BlueBlue | Yes, open capYes, open cap | 40 mm40 mm | Polypropylene open cap with NBR top sealPolypropylene open cap with NBR top seal | NBR bottom sealNBR bottom seal |
| P89801 | 23 mm0.906 in | 0÷80 °C-32÷176 °F | 50 mm1.969 in | White White | Yes, closed capYes, closed cap | -- | Polypropylene closed capPolypropylene closed cap | |
| P89801B | 23 mm0.906 in | 0÷80 °C-32÷176 °F | 50 mm1.969 in | BlueBlue | Yes, closed capYes, closed cap | -- | Polypropylene closed capPolypropylene closed cap | |
| P89802 | 25 mm0.984 in | 0÷80 °C-32÷176 °F | 55 mm2.165 in | White White | Yes, closed capYes, closed cap | -- | Polypropylene closed capPolypropylene closed cap | |
| P89802B | 25 mm0.984 in | 0÷80 °C-32÷176 °F | 55 mm2.165 in | BlueBlue | Yes, closed capYes, closed cap | -- | Polypropylene closed capPolypropylene closed cap | |
| P89803 | 30 mm1.181 in | 0÷80 °C-32÷176 °F | 64 mm2.520 in | White White | Yes, closed capYes, closed cap | -- | Polypropylene closed capPolypropylene closed cap | |
| P89803B | 30 mm1.181 in | 0÷80 °C-32÷176 °F | 64 mm2.520 in | BlueBlue | Yes, closed capYes, closed cap | -- | Polypropylene closed capPolypropylene closed cap | |
| P89804 | 32 mm1.260 in | 0÷80 °C-32÷176 °F | 73 mm2.874 in | White White | Yes, closed capYes, closed cap | -- | Polypropylene closed capPolypropylene closed cap | |
| P89804B | 32 mm1.260 in | 0÷80 °C-32÷176 °F | 73 mm2.874 in | BlueBlue | Yes, closed capYes, closed cap | -- | Polypropylene closed capPolypropylene closed cap | |
| P89805 | 38 mm1.496 in | 0÷80 °C-32÷176 °F | 84 mm3.307 in | White White | Yes, closed capYes, closed cap | -- | Polypropylene closed capPolypropylene closed cap | |
| P89805B | 38 mm1.496 in | 0÷80 °C-32÷176 °F | 84 mm3.307 in | BlueBlue | Yes, closed capYes, closed cap | -- | Polypropylene closed capPolypropylene closed cap | |
| P89851 | 23 mm0.906 in | 0÷80 °C-32÷176 °F | 50 mm1.969 in | White White | Yes, open capYes, open cap | 20 mm20 mm | Polypropylene open cap with NBR top sealPolypropylene open cap with NBR top seal | NBR bottom sealNBR bottom seal |
| Series: | Hygienic safety capHygienic safety cap |
|---|---|
| Material: | PlasticPlastic |
| Unit of measure: | Ea |
| Box: | - |
