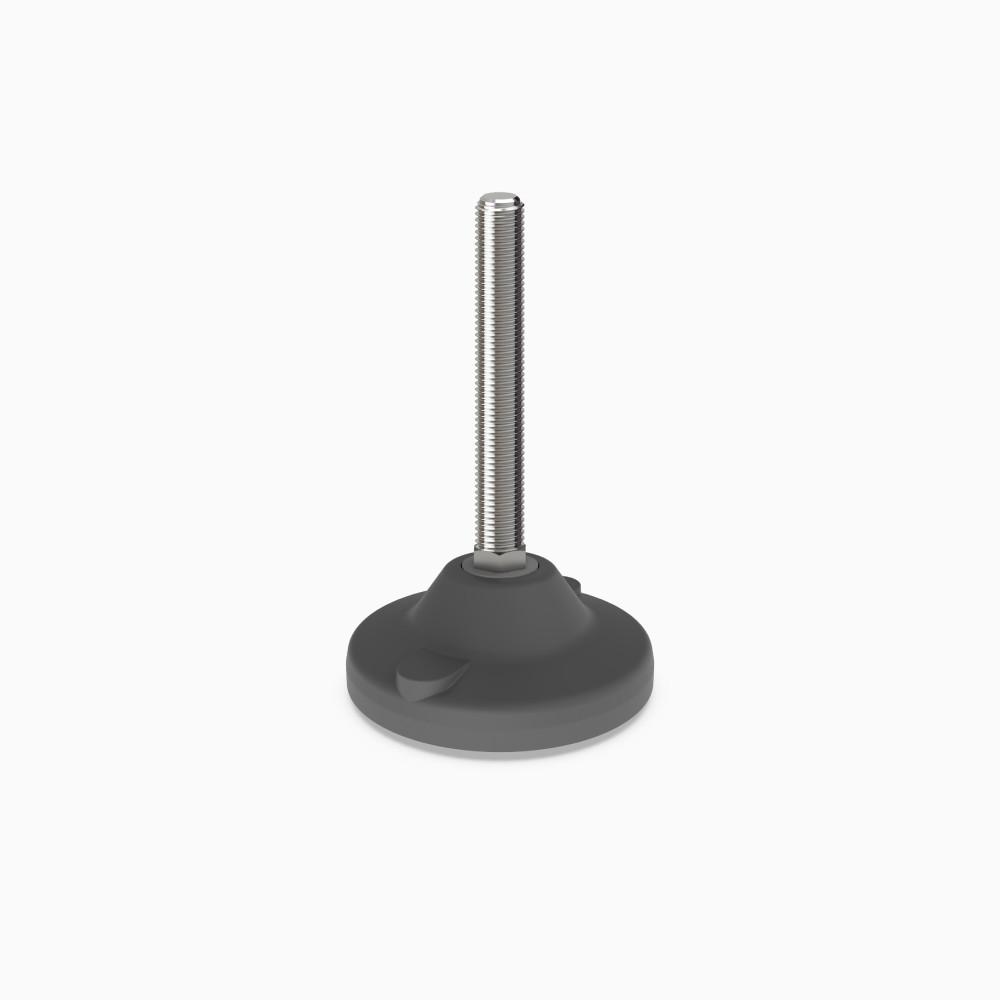

Muscle Ø123 Type A 2 Fixing point Anti-Slip
Leveling feet > Muscle
The MUSCLE series, with plastic baseplate, fully threaded spindle and stainless steel washer is the standard choice for the industrial environments.
The spindle can be made with flat or hexagonal key wrench and is available in two different materials, zinc plated steel or stainless steel and the baseplate is available with or without rubber pad.
The spindle is fixed by using a circlip or with a self-locking nut.
Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 1.000 N
Product configuration
| Product code | L | Key slot | Spindle material | Thread size | H tot | Design | Key 1 |
|---|---|---|---|---|---|---|---|
| P95853HY | 198 mm7.795 in | HexagonalHexagonal | Stainless steelStainless steel | 0,750"-100,750"-10 | 250 mm9.843 in | StandardStandard | 20 mm0.787 in |
| P95952HY | 148 mm5.827 in | HexagonalHexagonal | Stainless steelStainless steel | 1"-81"-8 | 200 mm7.874 in | StandardStandard | 24 mm0.945 in |
| P95953HY | 198 mm7.795 in | HexagonalHexagonal | Stainless steelStainless steel | 1"-81"-8 | 250 mm9.843 in | StandardStandard | 24 mm0.945 in |
| P95852ZHY | 148 mm5.827 in | HexagonalHexagonal | Zinc Plated SteelZinc Plated Steel | 0,750"-100,750"-10 | 200 mm7.874 in | StandardStandard | 20 mm0.787 in |
| P95853ZHY | 198 mm7.795 in | HexagonalHexagonal | Zinc Plated SteelZinc Plated Steel | 0,750"-100,750"-10 | 250 mm9.843 in | StandardStandard | 20 mm0.787 in |
| P95952ZHY | 148 mm5.827 in | HexagonalHexagonal | Zinc Plated SteelZinc Plated Steel | 1"-81"-8 | 200 mm7.874 in | StandardStandard | 24 mm0.945 in |
| P95953ZHY | 198 mm7.795 in | HexagonalHexagonal | Zinc Plated SteelZinc Plated Steel | 1"-81"-8 | 250 mm9.843 in | StandardStandard | 24 mm0.945 in |
| P95852HY | 148 mm5.827 in | HexagonalHexagonal | Stainless steelStainless steel | 0,750"-100,750"-10 | 200 mm7.874 in | StandardStandard | 20 mm0.787 in |
| Design: | StandardStandard |
|---|---|
| Base material: | PlasticPlastic |
| Diameter: | 123 mm4.843 in |
| Fixing point: | 22 |
| Anti-slip: | YesYes |
| Unit of measure: | Ea |
| Box: | - |
