S400 Ø105 1 Fixing point Anti-Slip

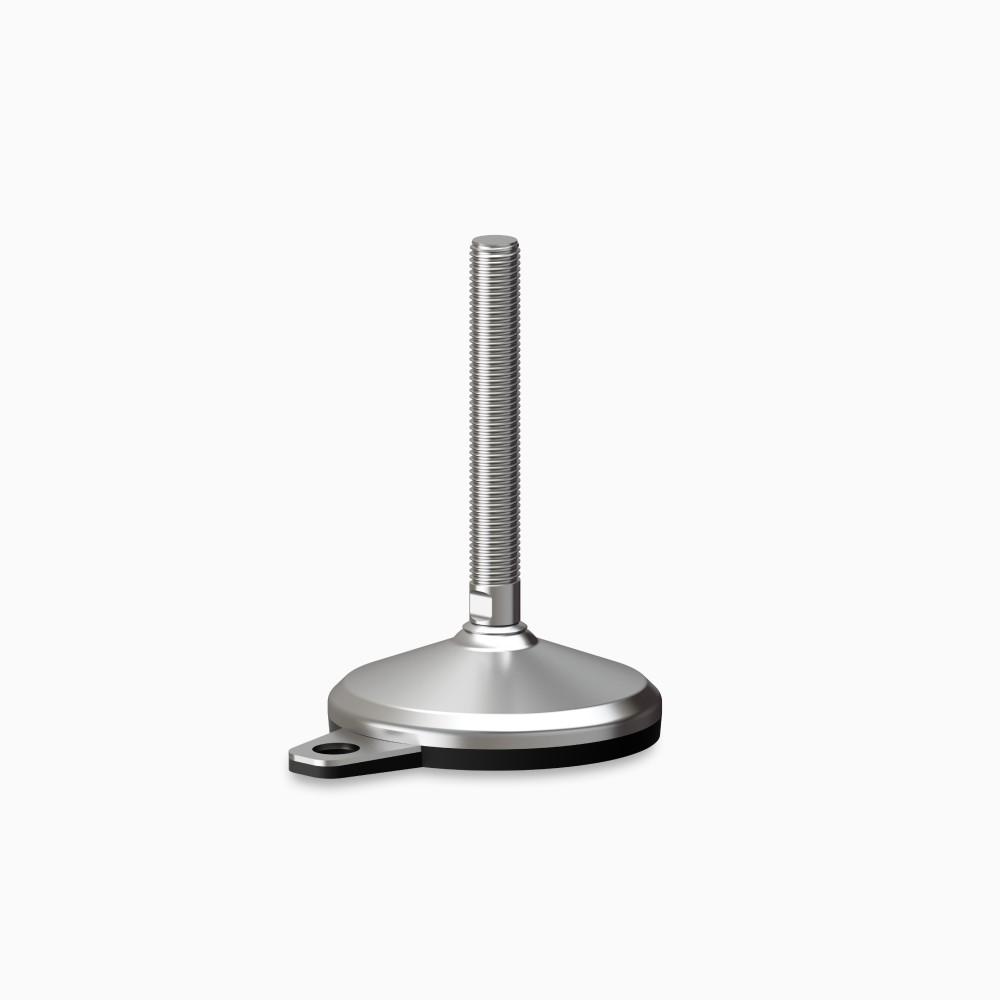

Leveling feet > S400
The S400 series, with overmolded base plate in austenitic stainless steel, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required.
The stainless steel baseplate and its particular shape guarantees an excellent cleanability, even in critical conditions; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip properties and hermetic closure between the leveller and the floor.
Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SPLIT and HEAVY-SPLIT).
Product configuration
| Product code | L | Key slot | Spindle material | Thread size | H tot | Design | Key 1 |
|---|---|---|---|---|---|---|---|
| P901309Y | 81.3 mm3.201 in | StandardStandard | Stainless steelStainless steel | 0,625"-110,625"-11 | 130 mm5.118 in | StandardStandard | 13 mm0.512 in |
| P901310Y | 111.3 mm4.382 in | StandardStandard | Stainless steelStainless steel | 0,625"-110,625"-11 | 160 mm6.299 in | StandardStandard | 13 mm0.512 in |
| P901311Y | 141.3 mm5.563 in | StandardStandard | Stainless steelStainless steel | 0,625"-110,625"-11 | 190 mm7.480 in | StandardStandard | 13 mm0.512 in |
| P901312Y | 191.3 mm7.531 in | StandardStandard | Stainless steelStainless steel | 0,625"-110,625"-11 | 240 mm9.449 in | StandardStandard | 13 mm0.512 in |
| P901313Y | 52.3 mm2.059 in | StandardStandard | Stainless steelStainless steel | 0,750"-100,750"-10 | 100 mm3.937 in | StandardStandard | 17 mm0.669 in |
| P901314Y | 82.3 mm3.240 in | StandardStandard | Stainless steelStainless steel | 0,750"-100,750"-10 | 130 mm5.118 in | StandardStandard | 17 mm0.669 in |
| P901315Y | 112.3 mm4.421 in | StandardStandard | Stainless steelStainless steel | 0,750"-100,750"-10 | 160 mm6.299 in | StandardStandard | 17 mm0.669 in |
| P901316Y | 142.3 mm5.602 in | StandardStandard | Stainless steelStainless steel | 0,750"-100,750"-10 | 190 mm7.480 in | StandardStandard | 17 mm0.669 in |
| P901317Y | 192.3 mm7.571 in | StandardStandard | Stainless steelStainless steel | 0,750"-100,750"-10 | 240 mm9.449 in | StandardStandard | 17 mm0.669 in |
| P901318Y | 252.3 mm9.933 in | StandardStandard | Stainless steelStainless steel | 0,750"-100,750"-10 | 300 mm11.811 in | StandardStandard | 17 mm0.669 in |
| P901319Y | 76 mm2.992 in | StandardStandard | Stainless steelStainless steel | 1"-81"-8 | 130 mm5.118 in | StandardStandard | 19 mm0.748 in |
| P901320Y | 106 mm4.173 in | StandardStandard | Stainless steelStainless steel | 1"-81"-8 | 160 mm6.299 in | StandardStandard | 19 mm0.748 in |
| P901321Y | 136 mm5.354 in | StandardStandard | Stainless steelStainless steel | 1"-81"-8 | 190 mm7.480 in | StandardStandard | 19 mm0.748 in |
| P901322Y | 186 mm7.323 in | StandardStandard | Stainless steelStainless steel | 1"-81"-8 | 240 mm9.449 in | StandardStandard | 19 mm0.748 in |
| P901323Y | 246 mm9.685 in | StandardStandard | Stainless steelStainless steel | 1"-81"-8 | 300 mm11.811 in | StandardStandard | 19 mm0.748 in |
| P901308Y | 51.3 mm2.020 in | StandardStandard | Stainless steelStainless steel | 0,625"-110,625"-11 | 100 mm3.937 in | StandardStandard | 13 mm0.512 in |
| Design: | StandardStandard |
|---|---|
| Base material: | MetalMetal |
| Diameter: | 105 mm4.134 in |
| Fixing point: | 11 |
| Anti-slip: | YesYes |
| Unit of measure: | Ea |
| Box: | - |
