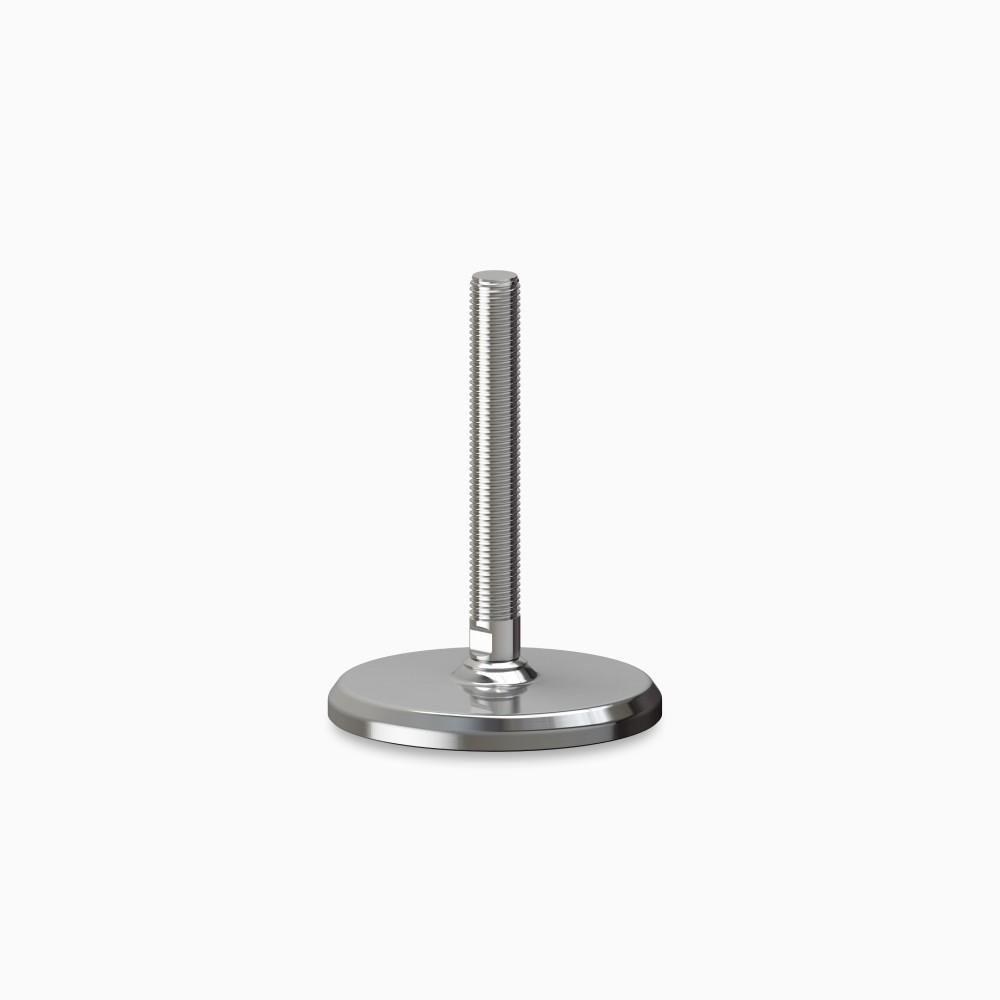

S400 Ø105 Heavy
Leveling feet > S400
The S400 series, with overmolded base plate in austenitic stainless steel, fully threaded spindle and stainless steel washer is the best choice for industrial environments where a high level of hygiene is required.
The stainless steel baseplate and its particular shape guarantees an excellent cleanability, even in critical conditions; the stainless steel washer ensures complete closure between the spindle and the baseplate and the NBR rubber guarantees anti-slip properties and hermetic closure between the leveller and the floor.
Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 4.000 N (S400); 8.000 N (S400 HEAVY); NOT AVAILABLE (SPLIT and HEAVY-SPLIT).
Product configuration
| Product code | L | Key slot | Spindle material | Thread size | H tot | Design | Key 1 |
|---|---|---|---|---|---|---|---|
| P901505Y | 81.3 mm3.201 in | StandardStandard | Stainless steelStainless steel | 0,625"-110,625"-11 | 112.5 mm4.429 in | HeavyHeavy | 13 mm0.512 in |
| P901506Y | 111.3 mm4.382 in | StandardStandard | Stainless steelStainless steel | 0,625"-110,625"-11 | 142.5 mm5.610 in | HeavyHeavy | 13 mm0.512 in |
| P901507Y | 141.3 mm5.563 in | StandardStandard | Stainless steelStainless steel | 0,625"-110,625"-11 | 172.5 mm6.791 in | HeavyHeavy | 13 mm0.512 in |
| P901508Y | 191.3 mm7.531 in | StandardStandard | Stainless steelStainless steel | 0,625"-110,625"-11 | 222.5 mm8.760 in | HeavyHeavy | 13 mm0.512 in |
| P901509Y | 52.3 mm2.059 in | StandardStandard | Stainless steelStainless steel | 0,750"-100,750"-10 | 82.5 mm3.248 in | HeavyHeavy | 17 mm0.669 in |
| P901510Y | 82.3 mm3.240 in | StandardStandard | Stainless steelStainless steel | 0,750"-100,750"-10 | 112.5 mm4.429 in | HeavyHeavy | 17 mm0.669 in |
| P901511Y | 112.3 mm4.421 in | StandardStandard | Stainless steelStainless steel | 0,750"-100,750"-10 | 142.5 mm5.610 in | HeavyHeavy | 17 mm0.669 in |
| P901512Y | 142.3 mm5.602 in | StandardStandard | Stainless steelStainless steel | 0,750"-100,750"-10 | 172.5 mm6.791 in | HeavyHeavy | 17 mm0.669 in |
| P901513Y | 192.3 mm7.571 in | StandardStandard | Stainless steelStainless steel | 0,750"-100,750"-10 | 222.5 mm8.760 in | HeavyHeavy | 17 mm0.669 in |
| P901514Y | 252.3 mm9.933 in | StandardStandard | Stainless steelStainless steel | 0,750"-100,750"-10 | 282.5 mm11.122 in | HeavyHeavy | 17 mm0.669 in |
| P901515Y | 76 mm2.992 in | StandardStandard | Stainless steelStainless steel | 1"-81"-8 | 111.5 mm4.390 in | HeavyHeavy | 19 mm0.748 in |
| P901516Y | 106 mm4.173 in | StandardStandard | Stainless steelStainless steel | 1"-81"-8 | 142.5 mm5.610 in | HeavyHeavy | 19 mm0.748 in |
| P901517Y | 136 mm5.354 in | StandardStandard | Stainless steelStainless steel | 1"-81"-8 | 172.5 mm6.791 in | HeavyHeavy | 19 mm0.748 in |
| P901518Y | 186 mm7.323 in | StandardStandard | Stainless steelStainless steel | 1"-81"-8 | 222.5 mm8.760 in | HeavyHeavy | 19 mm0.748 in |
| P901519Y | 246 mm9.685 in | StandardStandard | Stainless steelStainless steel | 1"-81"-8 | 282.5 mm11.122 in | HeavyHeavy | 19 mm0.748 in |
| P901504Y | 51.3 mm2.020 in | StandardStandard | Stainless steelStainless steel | 0,625"-110,625"-11 | 82.5 mm3.248 in | HeavyHeavy | 13 mm0.512 in |
| Design: | HeavyHeavy |
|---|---|
| Base material: | MetalMetal |
| Diameter: | 105 mm4.134 in |
| Fixing point: | 00 |
| Anti-slip: | NoNo |
| Unit of measure: | Ea |
| Box: | - |
